Product Details

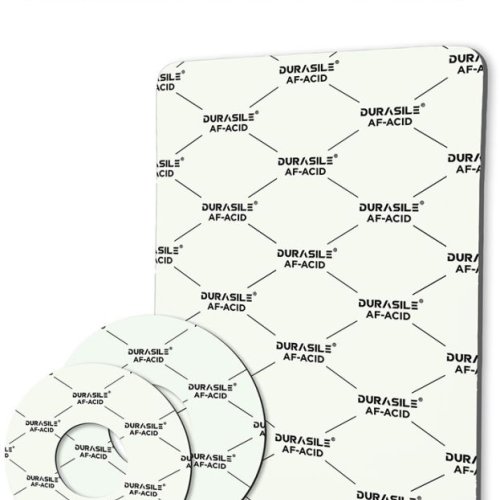

DURASILE AF-ACID (Non-Metallic)
Compressed Non-Asbestos Fibre (CNAF) Gasket Sheet
Product Overview:
DURASILE AF-ACID is a high-performance compressed non-asbestos (CNAF) gasket material specifically developed for use in chemically aggressive environments. It is widely utilized across process industries, water treatment plants, and the chemical industry for its excellent chemical resistance and sealing capabilities under medium-stress conditions.
Application Suitability:
DURASILE AF-ACID is suitable for:
- Highly aggressive chemical media
- Acidic and alkaline substances
- Applications requiring strong chemical resistance and dimensional stability
Composition:
This gasket sheet is manufactured from a blend of mineral and aramid fibres, bonded with synthetic elastomers (CSM). It is produced using the hot calendering process under strict quality control procedures certified to ISO 9001 standards.
Compliance Standards: ASTM F104 Line Callout: F719911E19A9B3M6
|
Parameter |
Specification |
|
Maximum Peak Temperature (C) |
400 C |
|
Maximum Operating Temperature (C) |
275 C |
|
Maximum Peak Pressure (bar) |
150 bar |
|
Available Thickness (in mm) |
0.30 to 6.00 (other thickness available on request) |
|
Available Colors |
White (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000 |
