Product Details

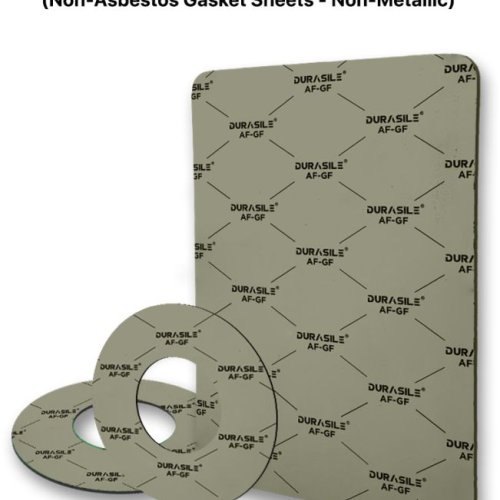

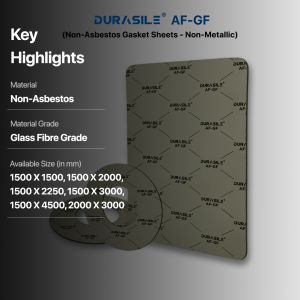

DURASILE AF GF (Non Metallic)
Compressed Non Asbestos (CNAF) Gasket Sheet - Premium Steam and Hot Water Resistant Material
Product Overview
DURASILE AF GF is a high-performance compressed non-asbestos (CNAF) gasket material, engineered for demanding applications across process industries, oil and gas, power plants, sugar mills, and water and chemical industries. This gasket sheet offers excellent resistance to steam and hot water, making it ideal for high-temperature and high-pressure environments. It provides enhanced stress relaxation and reliable sealing in a wide range of fluid and gas applications.
Key Features & Applications
- Premium gasket material for industrial applications
- Exceptional resistance to steam and hot water
- Suitable for sealing oils, fuels, gases, freons, pipelines, radiators, boilers, and more
- Used extensively in flanged joints across chemical processing, oil and gas, and power generation industries
- Offers excellent stress relaxation and high sealing reliability
Composition
DURASILE AF-GF gasket sheets are manufactured using a robust combination of aramid fibres and glass fibres, which are bonded with nitrile rubber (NBR). This advanced material is produced through the hot calendering process, ensuring uniform quality and performance. The manufacturing process adheres to stringent ISO 9001 quality control standards.
Compliance Standards
- BS 7531 Grade X
- ASTM F104 Line Callout: F712112A9B3E12A9M4

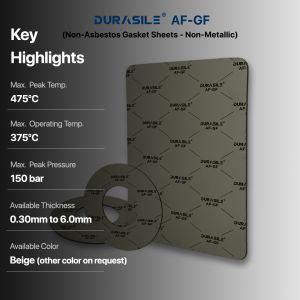

Technical Details
Parameter | Specification |
Maximum Peak Temperature (C) | 475 C |
Maximum Operating Temperature (C) | 375 C |
Maximum Peak Pressure (bar) | 150 bar |
Available Thickness (in mm) | 0.30 to 6.00 (other thickness available on request) |
Available Colors | Beige (other colors available on request) |
Available Sheet Sizes (in mm) | 1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000 |
