Product Details

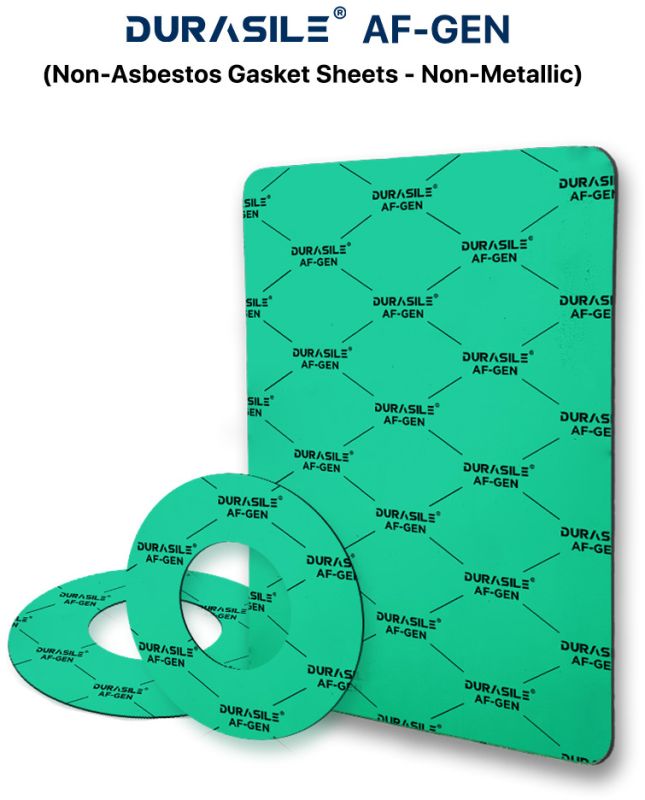

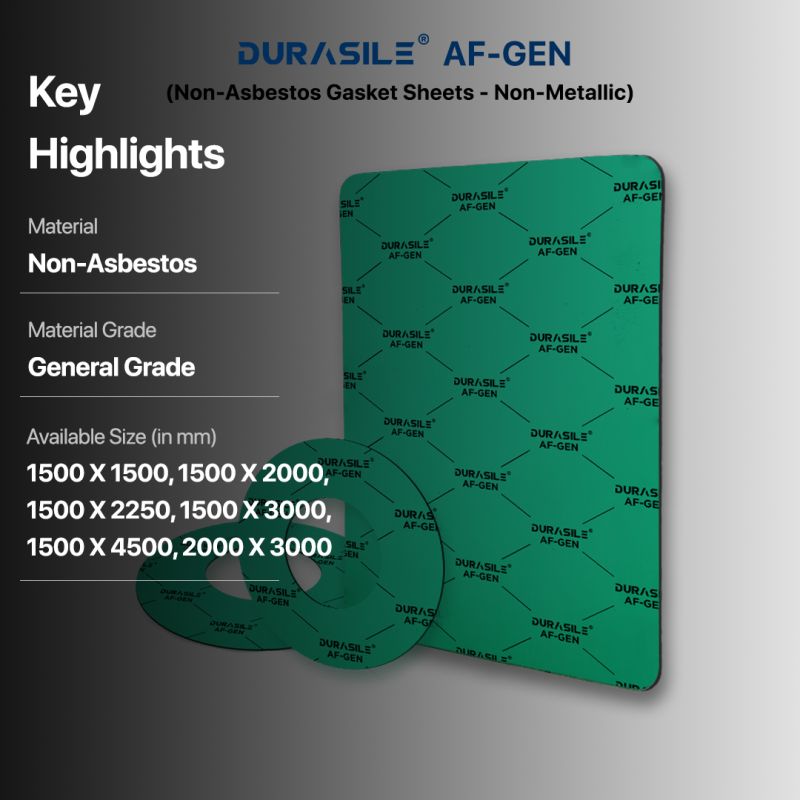

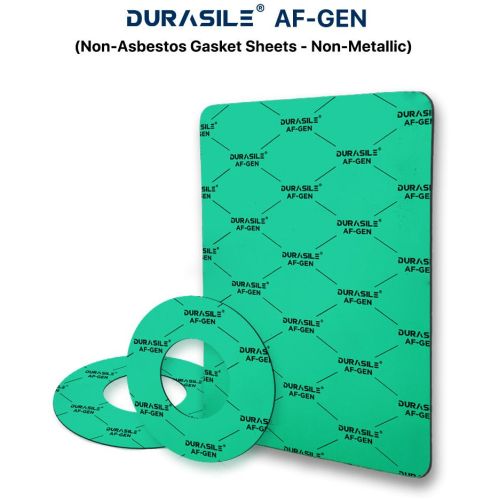

DURASILE AF GEN (Non Metallic)
Compressed Non Asbestos (CNAF) Gasket Sheet - General Purpose Grade
Product Overview
DURASILE AF GEN is a versatile compressed non-asbestos (CNAF) gasket material designed for a wide range of general purpose applications across process industries, water treatment, and chemical sectors. Engineered for low-stress conditions, this gasket sheet offers exceptional sealing performance in applications involving low-pressure steam, water, oils, fuels, and inert gases.
Key Features & Applications
General purpose gasket material for a variety of industries Ideal for use with low pressure steam, water, oils, fuels, and inert gases Suitable for low-stress sealing applications and environments Provides reliable performance in chemical processing, water treatment, petrochemical, and industrial applications.
Composition:
DURASILE AF GEN gasket sheets are produced from a carefully selected combination of mineral and organic fibres, which are securely bonded with nitrile rubber (NBR). The material is manufactured using the advanced hot calendering process, ensuring consistent quality and performance under rigorous quality control standards. All processes are registered under ISO 9001 certification, ensuring the highest manufacturing standards.
Compliance Standards: ASTM F104 Line Callout: F712232E34A9B6M4

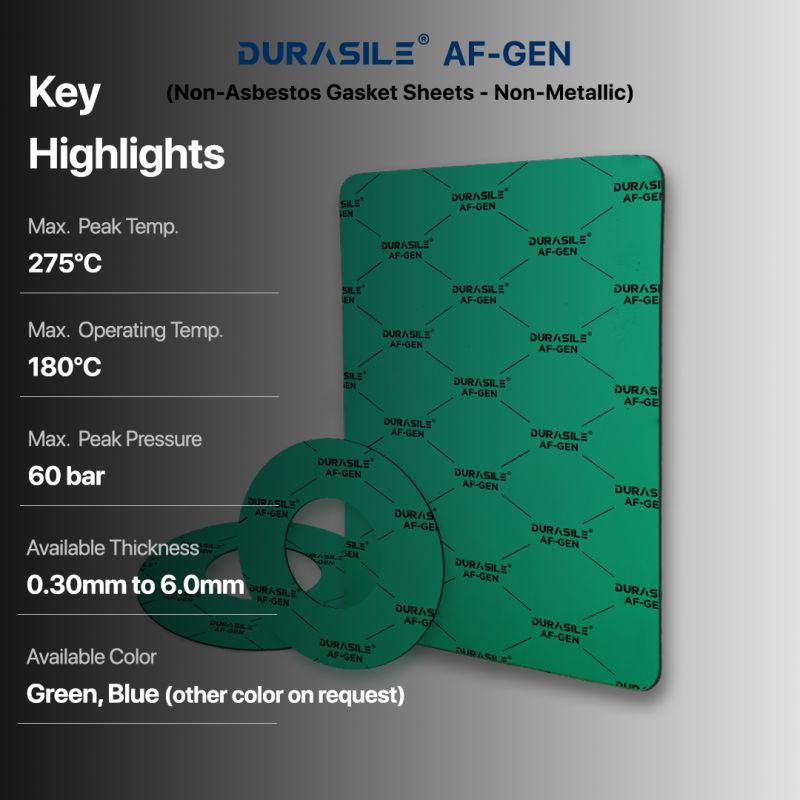

Technical Details
|
Parameter |
Specification |
|
Maximum Peak Temperature (C) |
275 C |
|
Maximum Operating Temperature (C) |
180 C |
|
Maximum Peak Pressure (bar) |
60 bar |
|
Available Thickness (in mm) |
0.30 to 6.00 (other thickness available on request) |
|
Available Colors |
Green, Blue (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000 |
