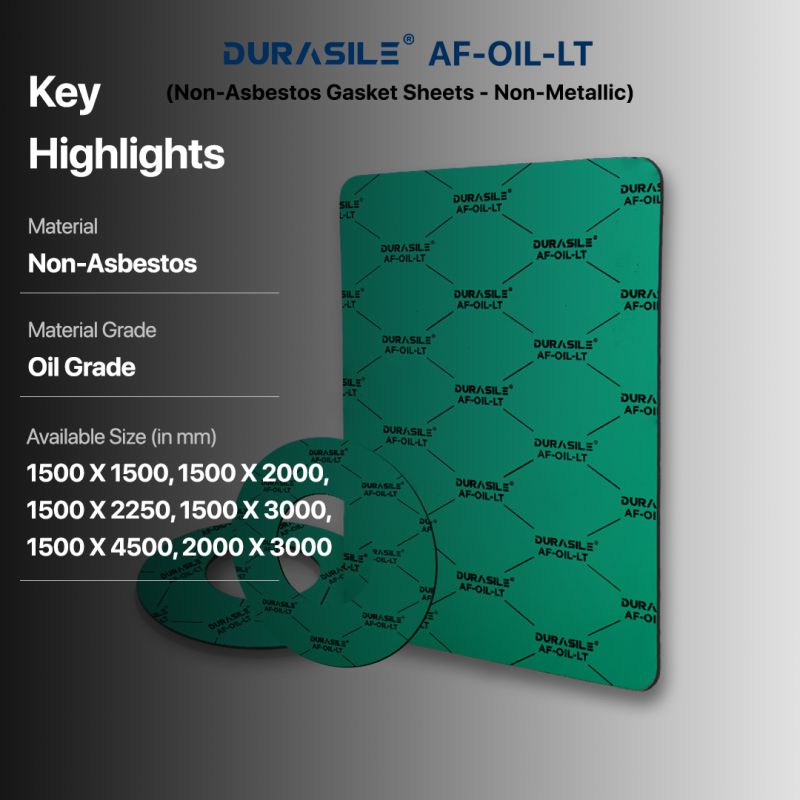

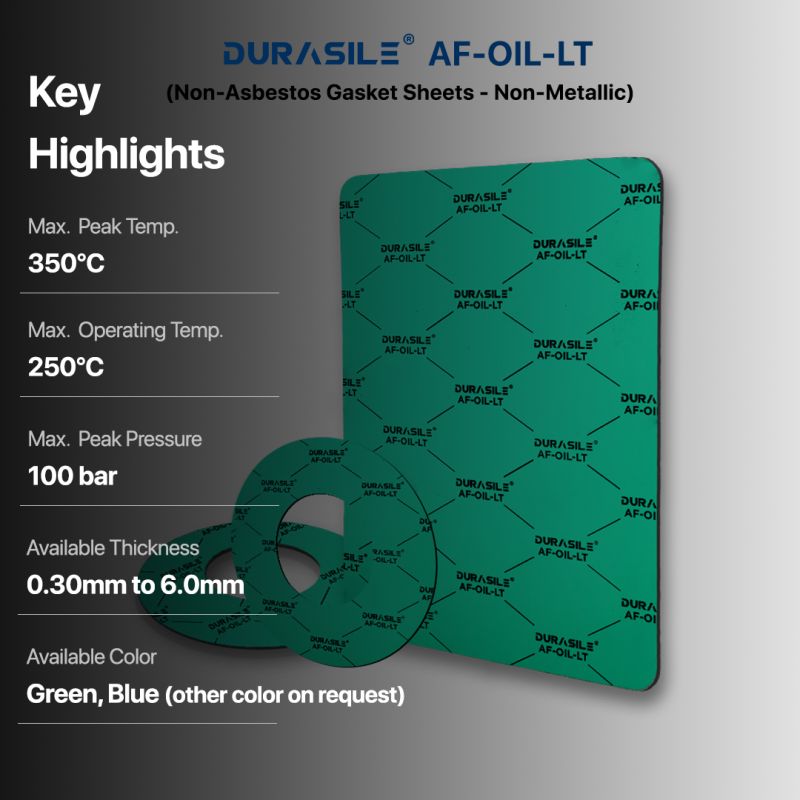

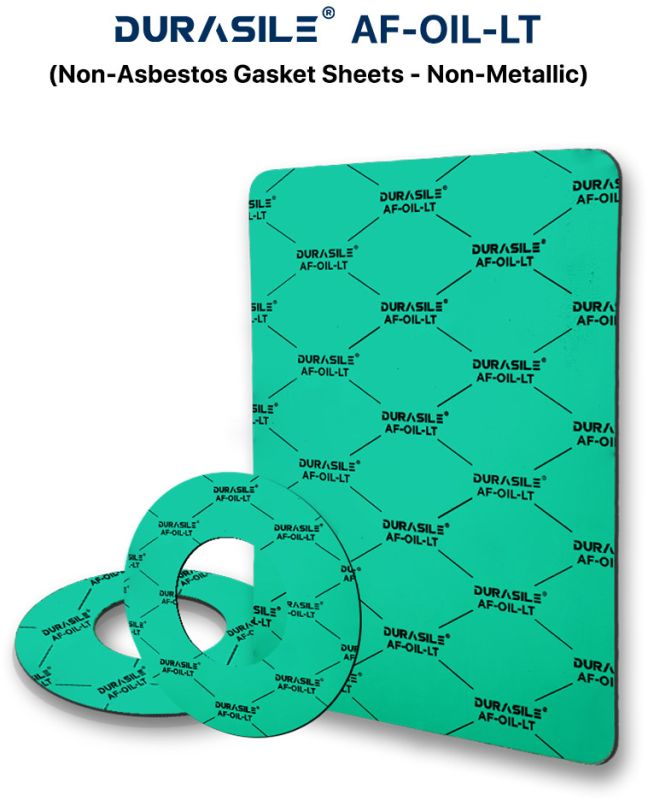

Durasile Af OIL-LT (Non Asbestos Gasket Sheet)

DURASILE AF-OIL-LT (Non-Metallic)

High-Performance CNAF Gasket Sheet for Medium Stress Applications.

Premium Asbestos-Free Jointing Sheet for Oils, Fuels, Chemicals & Industrial Fluids

Product Overview:

DURASILE AF-OIL-LT is a compressed non-asbestos (CNAF) gasket sheet engineered for reliable sealing performance in medium-stress industrial applications. Specially designed for use in oil refineries, chemical plants, power plants, sugar mills, and general process industries, this gasket material delivers excellent resistance to oils, fuels, lubricants, alcohols, gases, hydrocarbons, steam, water, and diluted acids and alkalis.

Key Features & Applications:

• Ideal for medium pressure and temperature sealing environments
• Compatible with a wide range of industrial fluids including cooling liquids, steam, and chemicals
• Perfect for flange joints, pumps, valves, compressors, and pipe systems
• Used across oil & gas, chemical processing, power generation, and water treatment industries
• Designed for durability, flexibility, and leak prevention under demanding conditions

Composition & Manufacturing Process:

DURASILE AF-OIL-LT is formulated from aramid fibres and organic fibres, bonded with nitrile butadiene rubber (NBR). It is manufactured using the hot calendaring process, ensuring consistent thickness, density, and performance. The entire production process is conducted under ISO 9001-certified quality control, delivering a product that meets the highest international standards.

Compliance & Standards:

• ASTM F 104 Line Callout: F712122A9B4E12M9
• Manufactured in accordance with ISO 9001 quality systems

Benefits at a Glance:

• Asbestos-free, eco-friendly formulation
• Excellent chemical resistance to industrial oils and fluids
• Maintains sealing integrity under medium thermal and mechanical stress
• Versatile usage across multiple industries and applications Long-lasting, cost-effective sealing solution

Technical Details
