Product Details

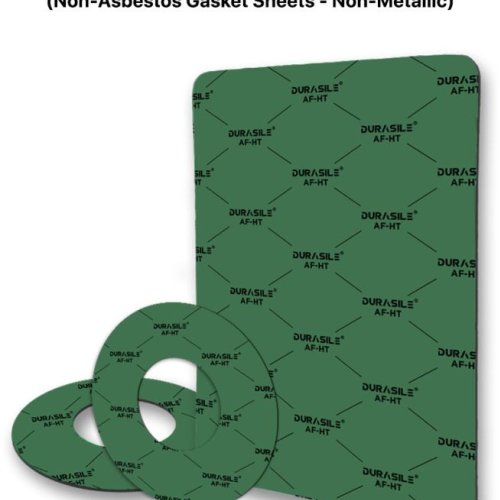

DURASILE AF HT (Non Metallic)
Compressed Non Asbestos (CNAF) Gasket Sheet - High Temperature Resistant Material for Industrial Applications
Product Overview
DURASILE AF-HT is a premium compressed non-asbestos (CNAF) gasket material, specifically designed for use in high-temperature and high-pressure applications. This versatile gasket material is ideal for industries such as oil and gas, power plants, sugar mills, and water treatment. It excels in sealing applications for compressors, transmission apparatus, gas meters, internal combustion engines, pipelines, pumps, and more. With its outstanding thermal stability, DURASILE AF-HT ensures durable and reliable performance in a wide range of demanding environments.
Key Features & Applications
- High temperature resistant gasket material for industrial and mechanical applications
- Ideal for use in compressors, transmission systems, gas meters, internal combustion engines, pipelines, pumps, and more
- Offers superior sealing performance in industries like oil and gas, chemical processing, power generation, and water treatment
- Non asbestos material for safe, eco friendly applications
Composition:
DURASILE AF-HT gasket sheets are composed of a combination of aramid fibres and mineral fibres, which are securely bonded with nitrile rubber (NBR). Manufactured using the hot calendering process, these sheets are produced under strict ISO 9001 certified quality control standards to ensure consistent and reliable performance in demanding environments.
Compliance Standards
- BS 7531 Grade X
- ASTM F104 Line Callout: F719911A9B3E19M6

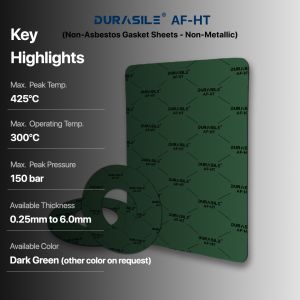

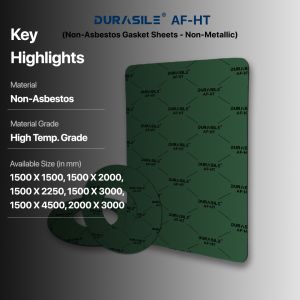

Technical Details
Parameter | Specification |
Maximum Peak Temperature (C) | 425 C |
Maximum Operating Temperature (C) | 300 C |
Maximum Peak Pressure (bar) | 150 bar |
Available Thickness (in mm) | 0.25 to 6.00 (other thickness available on request) |
Available Colors | Dark Green (other colors available on request) |
Available Sheet Sizes (in mm) | 1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000 |
