Product Details

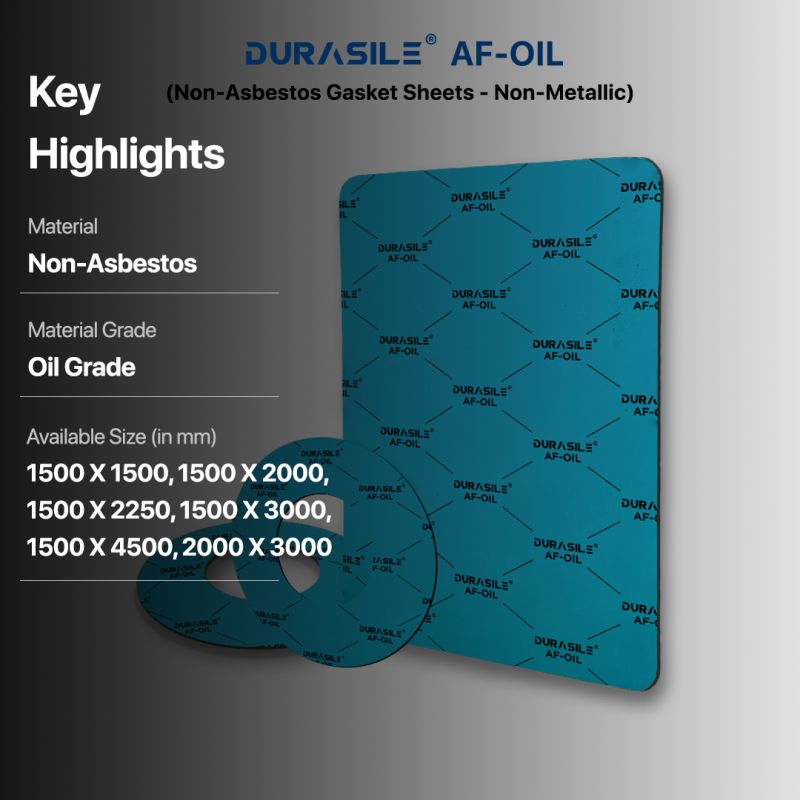

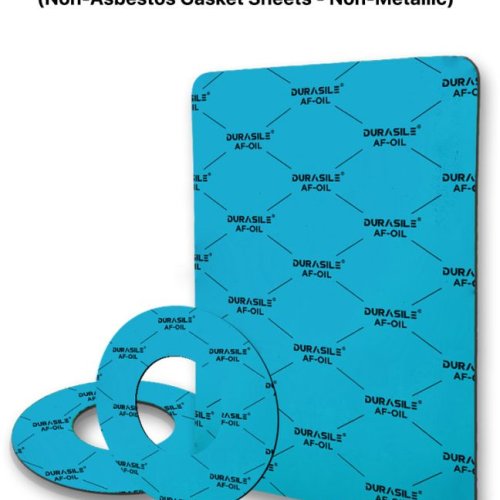

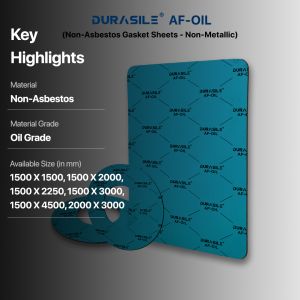

DURASILE AF-OIL (Non-Metallic)
Compressed Non-Asbestos Fibre (CNAF) Gasket Sheet
Product Overview:
DURASILE AF-OIL is a premium-grade compressed non-asbestos (CNAF) gasket material engineered for reliable sealing performance across a wide range of industrial applications. Designed to withstand medium-stress conditions, it is extensively used in process industries, oil and gas, power plants, sugar mills, and the water and chemical sectors.
Application Suitability: The material is suitable for use with:
- Oils, fuels, lubricants, alcohols
- Gases and hydrocarbons
- Steam and water
- Cooling liquids
- Most diluted acids and alkalis
Composition:
DURASILE AF-OIL is manufactured from a blend of aramid fibres and organic fibres, reinforced and bonded with high-quality nitrile rubber (NBR). The sheets are produced using the hot calendering process under stringent quality controls, compliant with ISO 9001 certified systems.
Compliance Standards:
- BS 7531 Grade Y
- ASTM F104 Line Callout: F712911E12A9B5M5

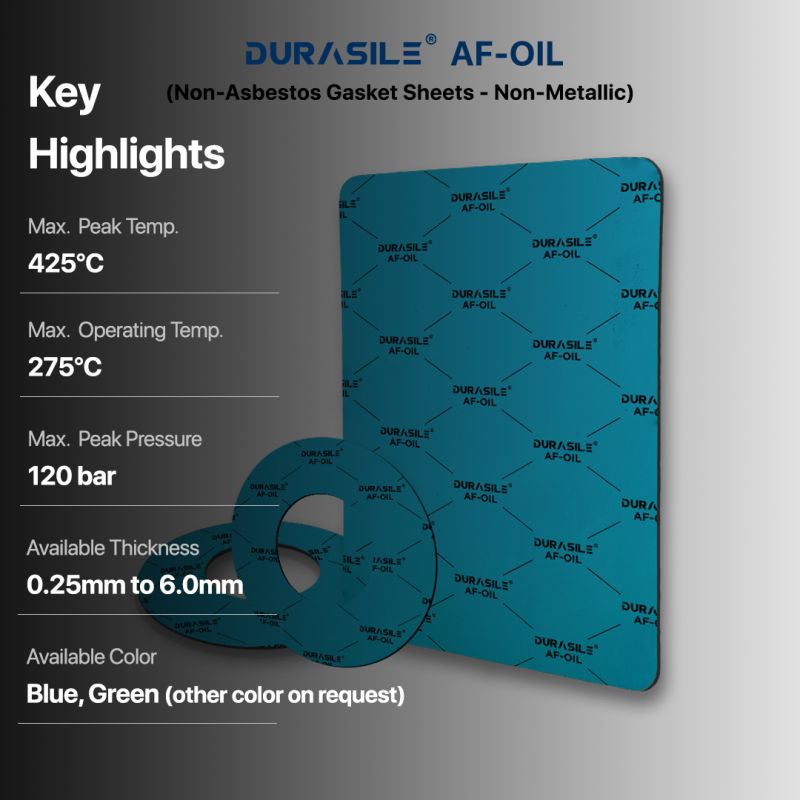

Technical Details
|
Parameter |
Specification |
|
Maximum Peak Temperature (C) |
425 C |
|
Maximum Operating Temperature (C) |
275 C |
|
Maximum Peak Pressure (bar) |
120 bar |
|
Available Thickness (in mm) |
0.25 to 6.00 (other thickness available on request) |
|
Available Colors |
Blue, Green (other colors available on request) |
|
Available Sheet Sizes (in mm) |
1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000 |
